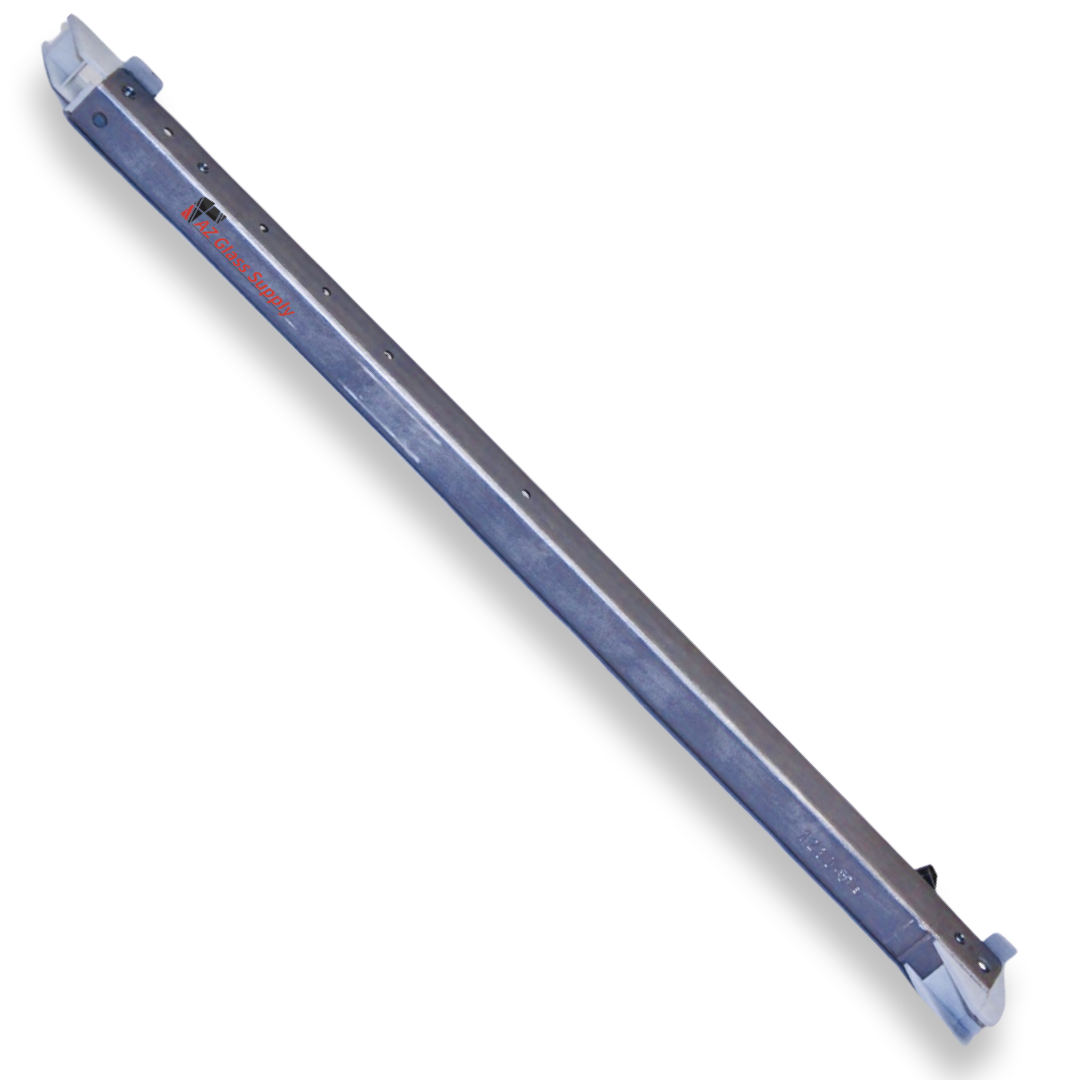

Window Channel Balance Replacement (Strength 20 – FA Series) 17" -43"
This window channel balance is designed for non-tilt windows and includes pre-installed winged guides for fast installation.
Available in sizes from 17 inches to 43 inches, all within Strength 20 (FA Series).
Compatible with most non-tilt residential windows using channel balances.
How to Read Your Balance (IMPORTANT)
Channel balances use stamped numbers that may NOT match the exact length.
Examples:
- 30-20 = 31 inch balance
- 30-2 = 31 inch balance
- Both formats (30-20 and 30-2) represent the same balance.
- The stamped number determines the correct replacement, not just the length.
- Important: Always verify your balance before ordering. If unsure, contact us and we’ll help you match it correctly. Call or Text (623) 939-1665
Window Channel Balance Replacement Details:
1/2" Channel Balance Actually 5/8" but considered 1/2" in the trade.
Channel Depth (Inches): 5/8
Channel Width (Inches): 9/16
Guides Attached: Yes
- Channel Sash Balance

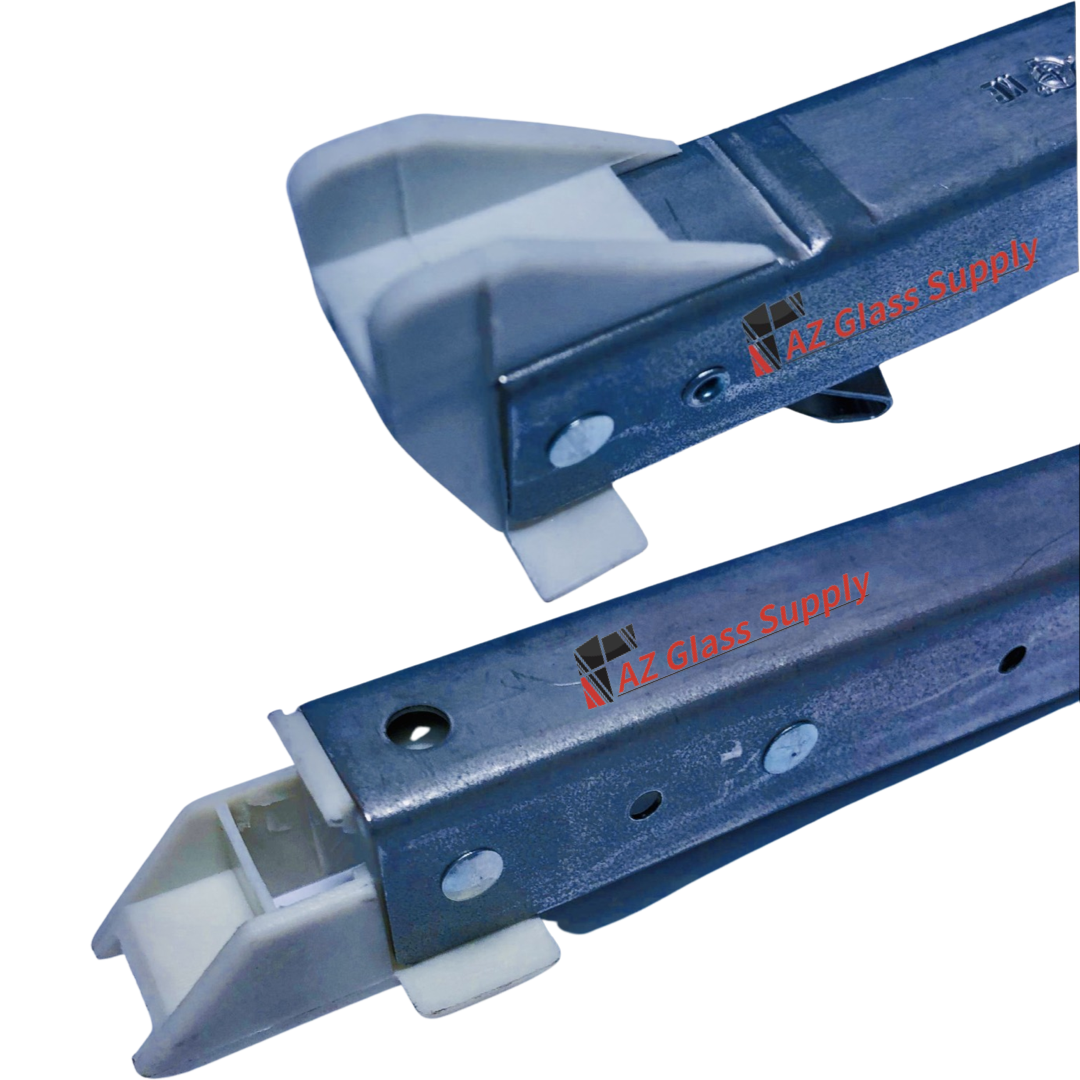

- Winged Guides Pre-Installed
- FA Series Sash Balance with Guides pre-attached to the channel.
- This balance is in stock with guides factory installed.
Number Stamped on Channel
1620 or 16-2 = 17" Long Vent Weight Range 8 to 12 lbs.
2220 or 22-2 = 23" Long Vent Weight Range 8 to 12 lbs.
2420 or 24-2 = 25" Long Vent Weight Range 9 to 15 lbs.
2620 or 26-2 = 27" Long Vent Weight Range 9 to 13 lbs.
2720 or 27-2 = 28" Long Vent Weight Range 9- to 13 lbs.
2820 or 28-2 = 29" Long Vent Weight Range 12 to 16 lbs.
3020 or 30-2 = 31" Long Vent Weight Range 12 to 16 lbs.
3220 or 32-2 = 33" Long Vent Weight Range 13 to 18 lbs.
3420 or 34-2 = 35" Long Vent Weight Range 13 to 18 lbs.
3820 or 38-2 = 39" Long Vent Weight Range 14 to 19 lbs.
4020 or 40-2 = 41" Long Vent Weight Range 14 to 19 lbs.
4120 or 41-2 = 42" Long Vent Weight Range 14 to 19 lbs.
4220 or 42-2 = 43" Long Vent Weight Range 14 to 19 lbs.
